When you are iterating on your LLM application (such as changing the model or the prompt), you will want to compare the results of different experiments. LangSmith supports a comparison view that lets you hone in on key differences, regressions, and improvements between different experiments.

​
Open the comparison view

  1. To access the experiment comaprison view, navigate to the Datasets & Experiments page.
  2. Select a dataset, which will open the Experiments tab.
  3. Select two or more experiments abd then click Compare.

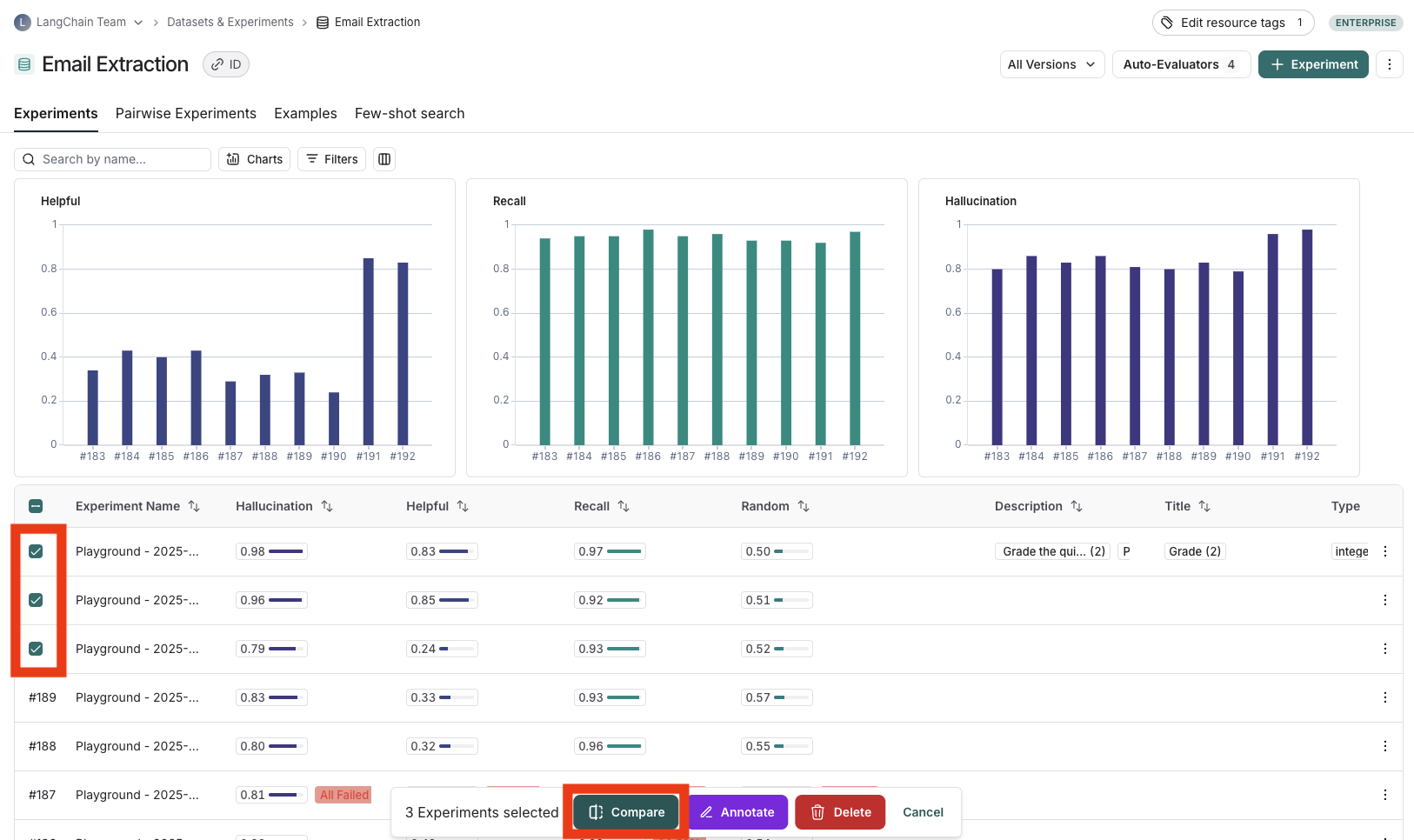

The Experiments view in the UI with 3 experiments selected and the Compare button highlighted.

​
Adjust the table display

You can toggle between different views by clicking Full or Compact at the top of the Comparing Experiments page. Toggling Full will show the full text of the input, output, and reference output for each run. If the reference output is too long to display in the table, you can click on Expand detailed view to view the full content. You can also select and hide individual feedback keys or individual metrics in the Display settings dropdown to isolate the information you need in the comparison view.

​
View regressions and improvements

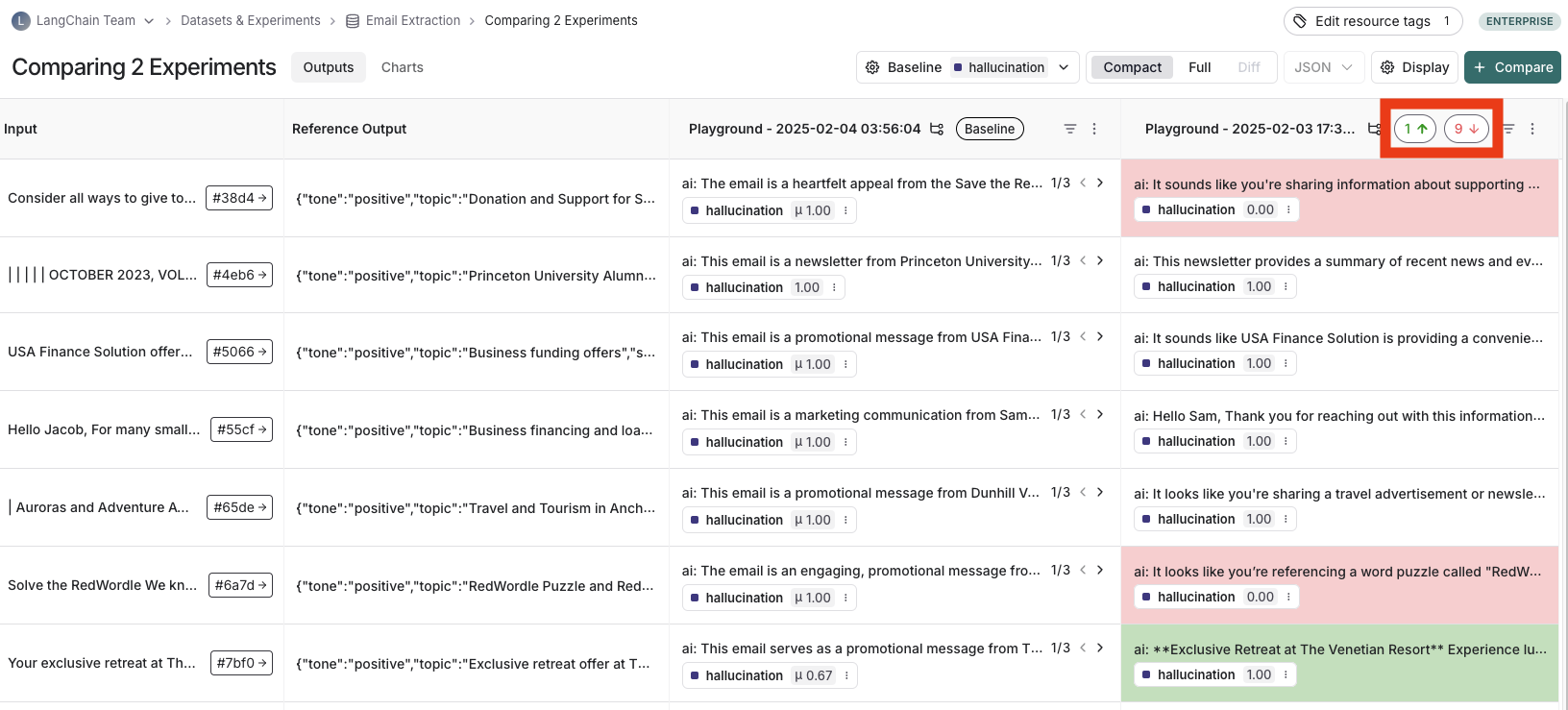

In the comparison view, runs that regressed on your specified feedback key against your baseline experiment will be highlighted in red, while runs that improved will be highlighted in green. At the top of each column, you can find how many runs in that experiment did better and how many did worse than your baseline experiment. Click on the regressions or improvements buttons on the top of each column to filter to the runs that regressed or improved in that specific experiment. The comparison view comparing 2 experiments with the regressions and improvements highlighted in red and green respectively.

​
Update baseline experiment and metric

In order to track regressions, you need to:
  1. In the Baseline dropdown at the top of the comparison view, select a Baseline experiment against which to compare. By default, the newest experiment is selected as the baseline.
  2. Select a Feedback key (evaluation metric) you want to focus compare against. One will be assigned by default, but you can adjust as needed.
  3. Configure whether a higher score is better for the selected feedback key. This preference will be stored.

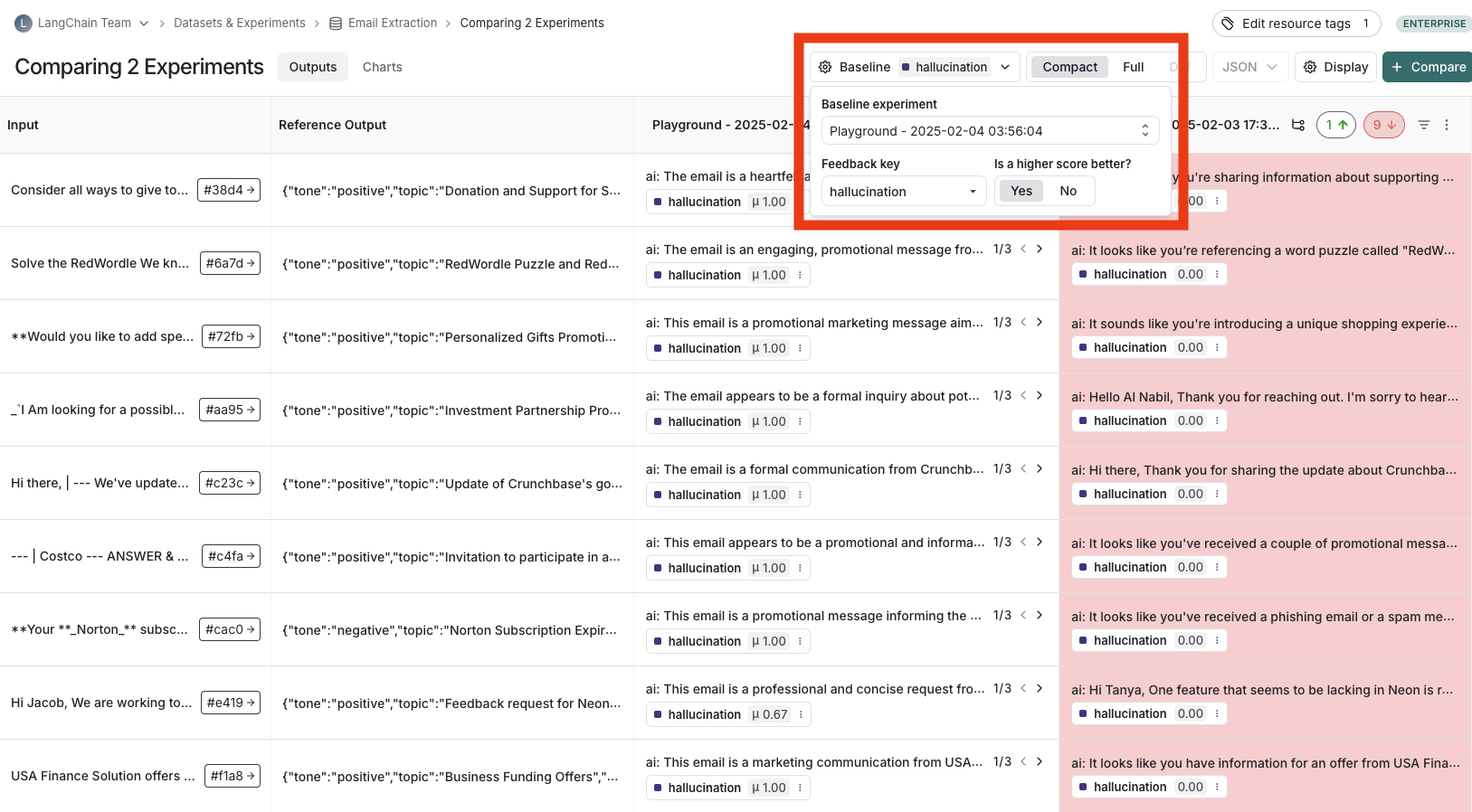

The Baseline dropdown highlighted with a selected experiment and feedback key of "hallucination".

​
Open a trace

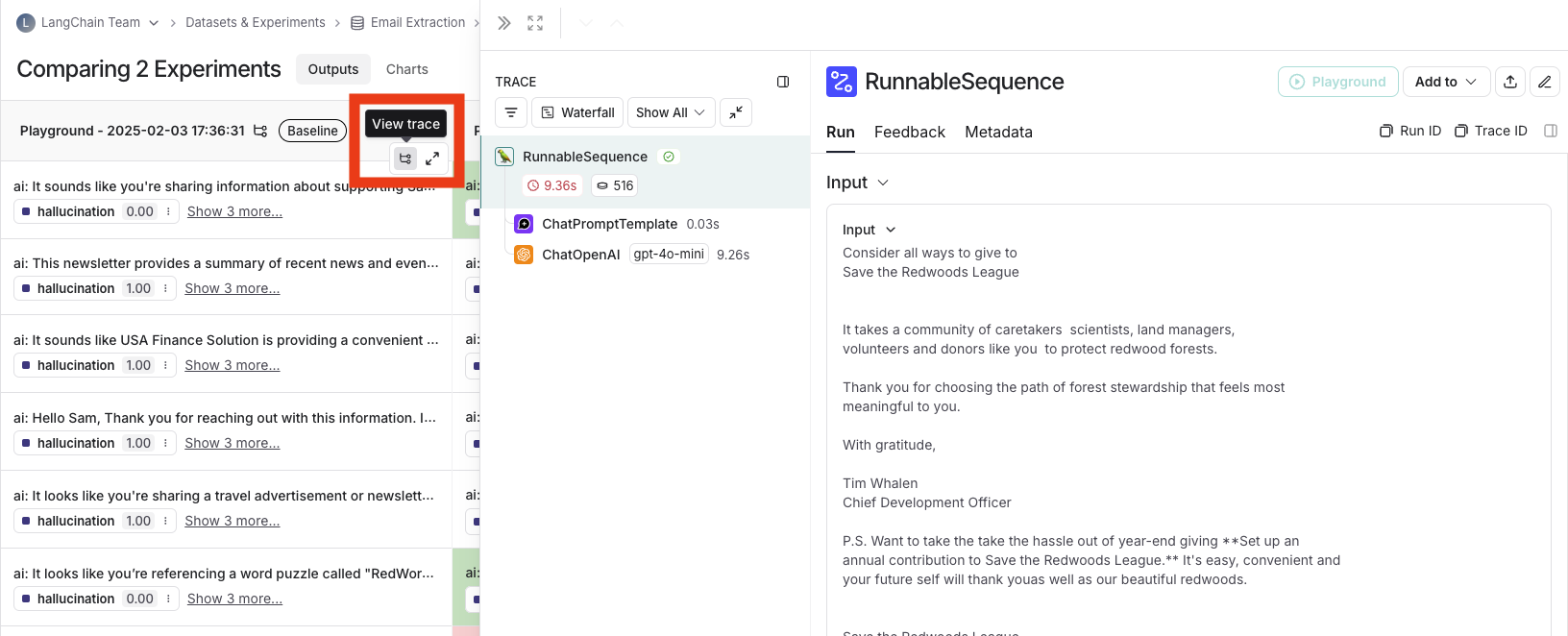

If the example you’re evaluating is from an ingested run, you can hover over the output cell and click on the trace icon to open the trace view for that run. This will open up a trace in the side panel. The View trace icon highlighted from an ingested run.

​
Expand detailed view

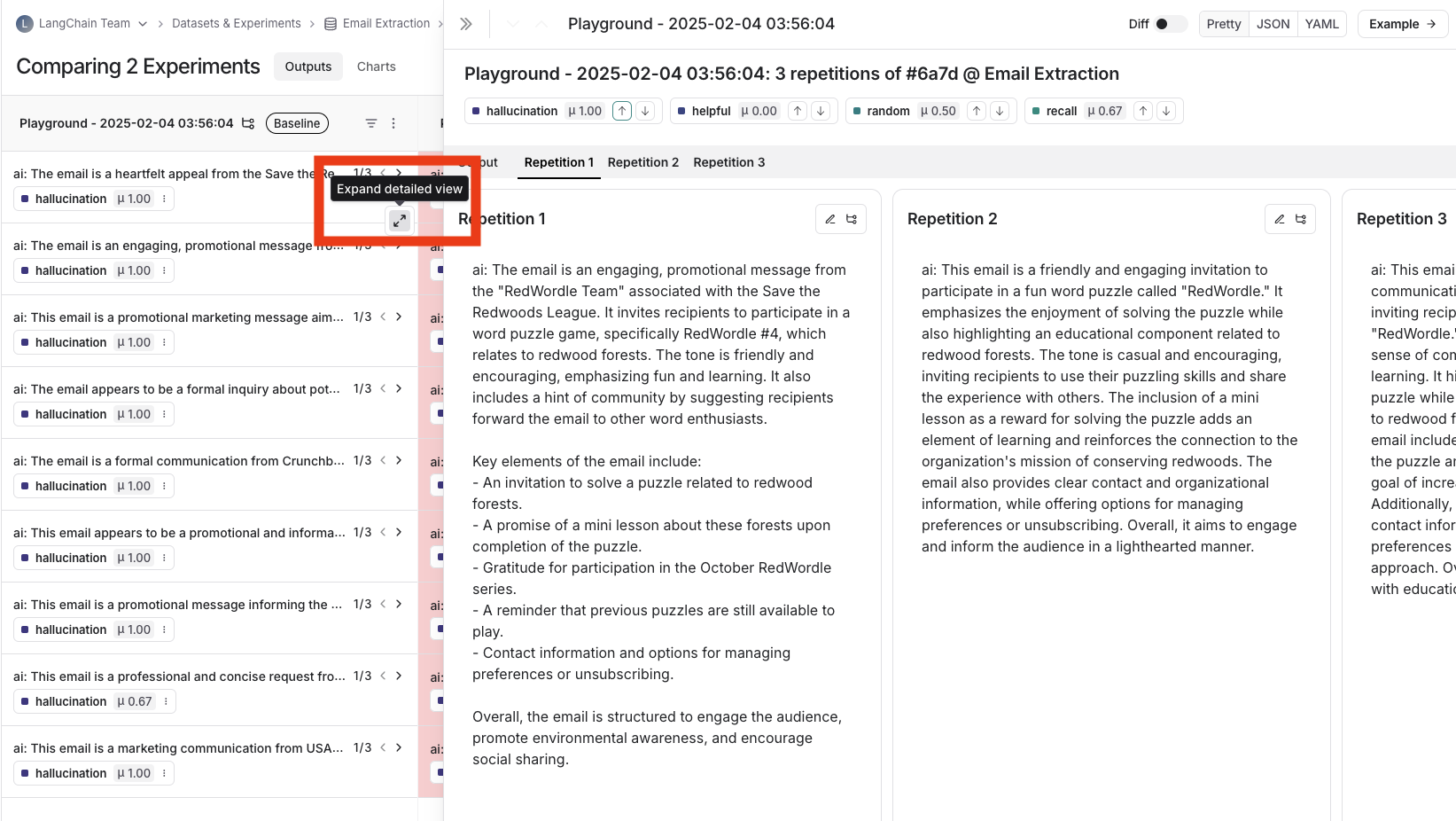

From any cell, you can click on the expand icon in the hover state to open up a detailed view of all experiment results on that particular example input, along with feedback keys and scores. An example in the Comparing Experiments view of a expanded view of the repetitions.

​
View summary charts

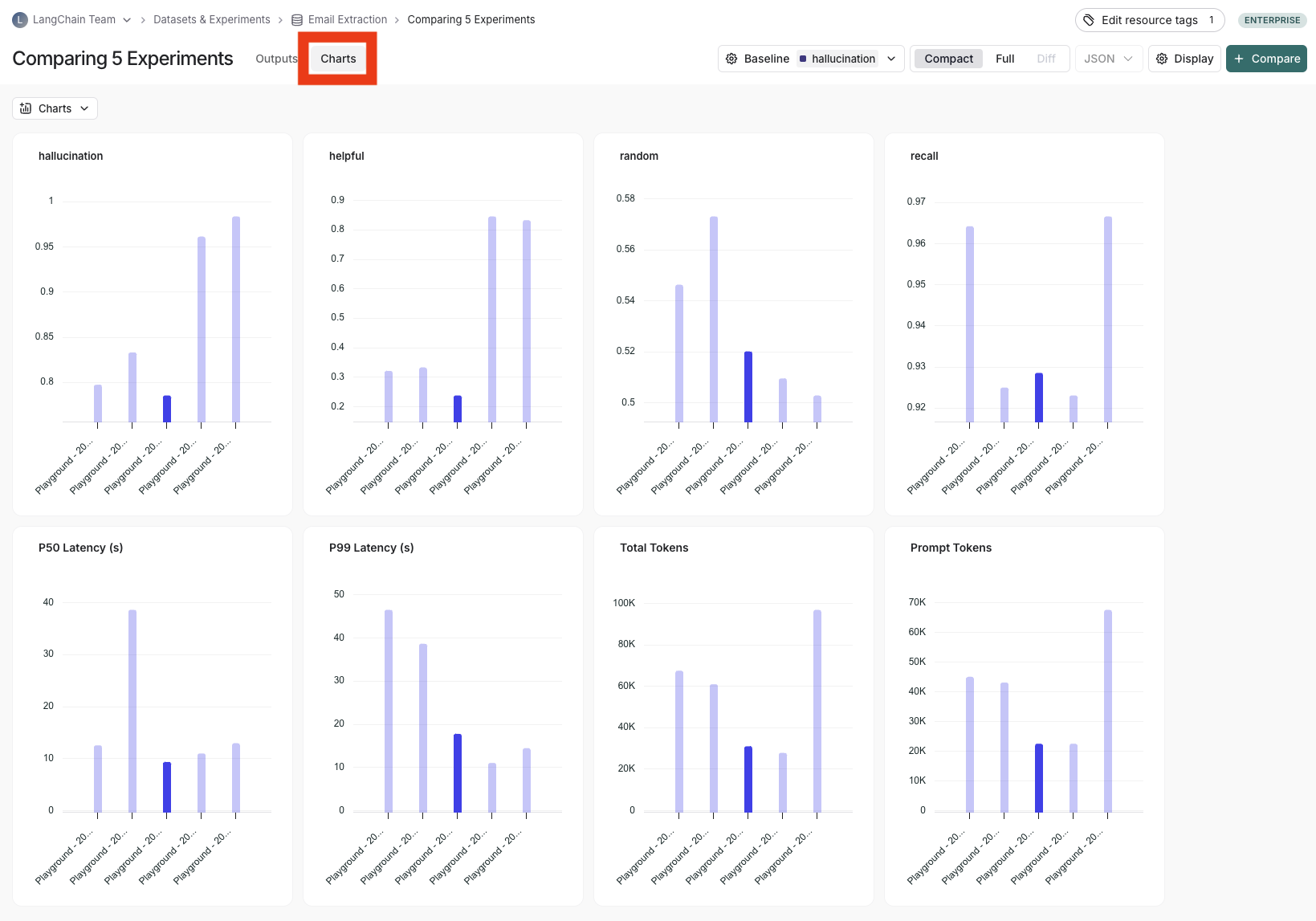

View summary charts by clicking on the Charts tab at the top of the page. The Charts summary page with 8 summary charts for the comparison.

​
Use experiment metadata as chart labels

You can configure the x-axis labels for the charts based on experiment metadata. Select a metadata key in the x-axis dropdown to change the chart labels. x-axis dropdown highlighted with a list of the metadata attached to the experiment.
